Vlf Test Set

Vlf Test Set
Vlf Test Set
Product Code : JI - 01
Brand Name : JUPITER INSTRUMENT
Product Description

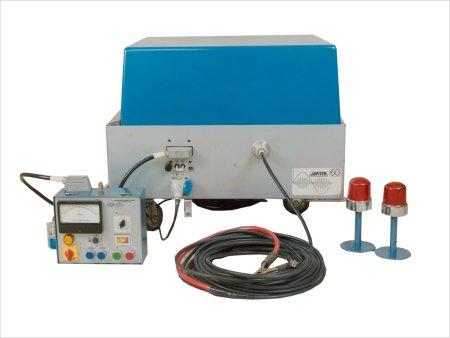

VLF Test Set

We are an incomparable name on international platform affianced in providing an excellent quality array of VLF Test Set that is used for testing medium voltage cables. Manufactured by utilizing quality-assured components, it is made under the supervision of our industrial experts with the aid of contemporary technology.  This VLF Test Set is also tested on various norms to assure its delivery at the clients premises.

Features:

  • Longer service life
  • Less power consumption
  • Rugged construction
  • Accurate results

Specifications:

  • VLF AC Hipot Series
  • 0-40 kVAC and 100 kVACModels With variable frequency 0.01 to 0.1Hz, output.

VLF AC Hipot Series (100 kV VLF Model Also available)
Some Benefits of JUPITER VLF-AC Hipots :

  • Smallest, lightest weight AC-VLF Hipot available with the largest test load ratings.
  • Two-piece portability
  • Simple and easy operation
  • 230 Vac, 50/60 Hz, Input line required
  • The VLF AC hipot does NOT generate harmful voids in the Insulation through treeing.
  • Harmful space changes dose not generated during testing .
  • A true-sinusoidal output voltage waveform is used
  • No traveling waves are generated during testingWaveshape independent of capacitive loading between 0.01 and maximum load.

Additional test applications :

  • Rotating machinery-IEEE-433
  • Capacitors
  • Full Real Cable
  • Bushings & Insulators
  • Transformers

Need more information on VLF

  • For more information on our VLF products and VLF testing, please contact us.

SPECIFICATION JLF 60 (60 kV,)

Input

230V, 50/60Hz, AC.

Output Voltage and Frequency

Sinusoidal, 0-60 kVAC peak 0.01 to 0.1Hz

Load Rating

10Fu

Duty

Continuous

kilowatt meter

4" deflection 60-0-60 kVAC Peak

Charging Current meter

As per requirement

Modes

VLF AC & DC Mode

Weight

90Kg. Approx.

HV Output Cable

20 Mtr. with Crocodile Clamp.

Interconnect Cable length

4 Mtr. with sockets

Shorting Stick

3 Mtr., 3 Mtr. Lead with Clamp
